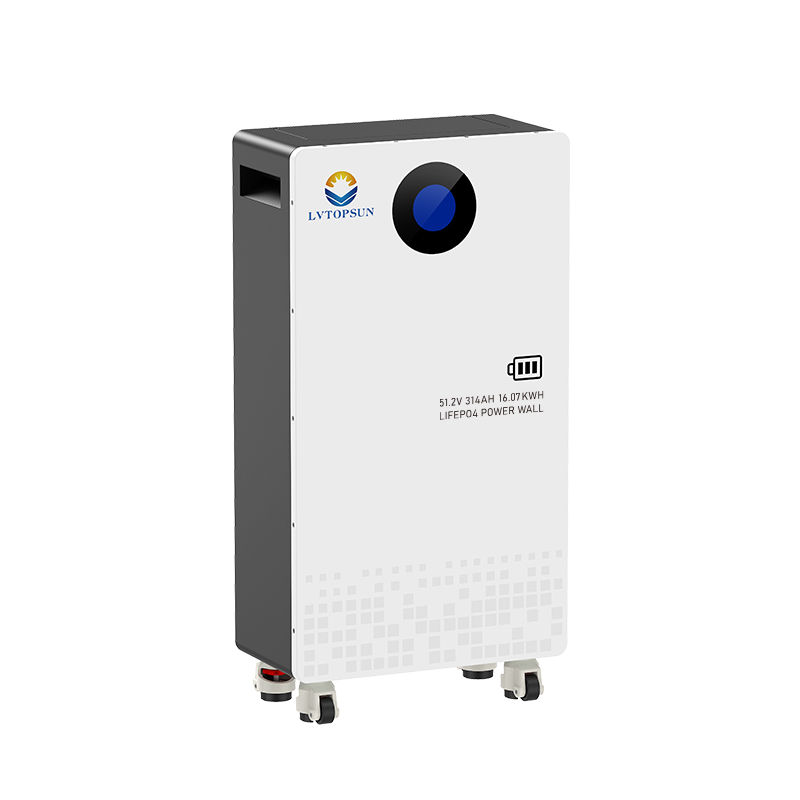

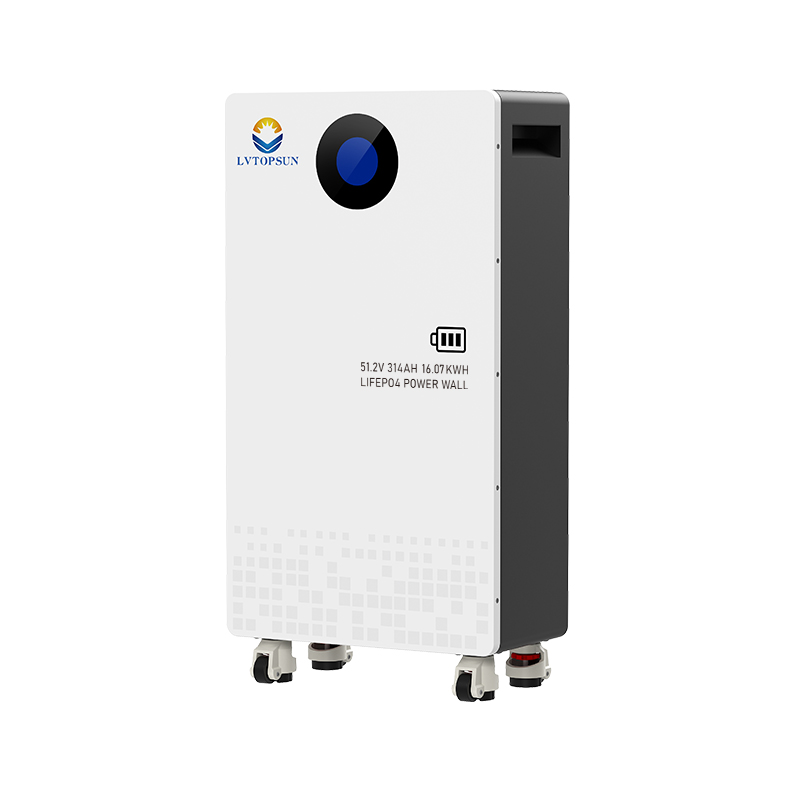

LVTS-512314-G3 Residential Photovoltaic Energy Storage Lithium-Ion Battery
The 51.2V 314Ah 16.08kWh LiFePO4 Battery is a high-capacity energy storage solution for solar systems, home backup, commercial energy storage, and off-grid applications. With 150A maximum charging, 200A maximum discharging, LCD/LED monitoring, and RS232/RS485/CAN communication, it delivers reliable and flexible energy storage.
₦0.00
The 51.2V 314Ah LiFePO4 Energy Storage Battery is a high-capacity lithium iron phosphate battery designed for residential, commercial, solar, backup power, and off-grid energy storage systems. With a nominal voltage of 51.2V, 314Ah capacity, and 16.08kWh nominal energy, it provides reliable and long-duration energy storage for demanding applications.
The battery supports a maximum charging current of 150A and a maximum discharge current of 200A, providing strong power delivery for high-demand loads. Its 45.6–56.16V discharge voltage range and 56.16V charge voltage provide flexible operation with compatible energy storage and inverter systems.
For convenient monitoring and system integration, the battery features an LED indicator and LCD display, together with RS232, RS485, and CAN communication interfaces. The battery is designed to operate from 0°C to 45°C while charging and -20°C to 45°C while discharging.
Key Features
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 51.2Vdc
- Nominal Capacity: 314Ah
- Nominal Energy: 16,076.8Wh / 16.08kWh
- Charge Voltage: 56.16V
- Maximum Charge Current: 150A
- Maximum Discharge Current: 200A
- Discharge Voltage Range: 45.6–56.16V
- Communication: RS232, RS485, CAN
- Dimensions (W × D × H): 866 × 450 × 230mm
- Weight: 119kg
- Charging Temperature: 0°C to 45°C
- Discharging Temperature: -20°C to 45°C
- Short-Term Storage: -10°C to 45°C, within 1 month
- Long-Term Storage: 0°C to 35°C, within 1 year
- Display: LED Indicator + LCD Display
- High-capacity 16.08kWh energy storage
- High-current charging and discharging
- Multiple communication interfaces
- Integrated LCD monitoring
- Suitable for solar and renewable energy storage
- Ideal for home and commercial backup power
- Suitable for off-grid and hybrid energy systems
Performance Specifications
| Performance | Specification |
|---|---|
| Nominal Voltage | 51.2Vdc |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16,076.8Wh / 16.08kWh |
| Charge Voltage | 56.16V |
| Maximum Charge Current | 150A |
| Maximum Discharge Current | 200A |
| Discharge Voltage Range | 45.6–56.16V |
| Dimensions (W × D × H) | 866 × 450 × 230mm |
| Weight | 119kg |
| Charging Temperature | 0°C to 45°C |
| Discharging Temperature | -20°C to 45°C |
| Short-Term Storage Temperature | -10°C to 45°C, within 1 month |
| Long-Term Storage Temperature | 0°C to 35°C, within 1 year |
| Display | LED Indicator + LCD Display |
| Communication | RS232, RS485, CAN |
