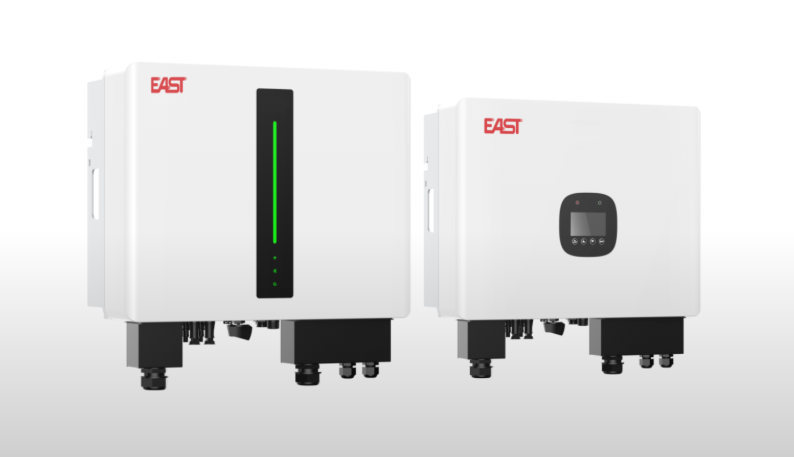

EAHI 3kW / 3.6kW / 5kW / 6kW Single-Phase Solar Inverter
The EAHI-SL Series 3kW/3.6kW/5kW/6kW Single-Phase Solar Inverter provides efficient and reliable solar power conversion with up to 97.8% efficiency and a 100–540V MPPT range. Featuring IP66 protection, natural cooling, low-noise operation, and RS485/WLAN communication, it is ideal for residential and small commercial solar PV systems.
₦0.00
The EAHI-SL Series Solar Inverter is a high-efficiency, single-phase PV inverter available in 3kW, 3.6kW, 5kW, and 6kW models. Designed for residential and small commercial solar installations, the series provides reliable and efficient conversion of solar energy into usable AC power.
The EAHI-SL series supports up to 550V maximum DC voltage and a wide 100–540V MPP voltage range, allowing flexible PV system design. The 3kW and 3.6kW models feature a single MPPT and DC input, while the 5kW and 6kW models provide dual MPPT trackers and two DC inputs for greater solar array flexibility.
With a maximum efficiency of 97.8%, power factor of 0.99, and total harmonic distortion below 3%, the series delivers high-quality and efficient AC power. Its IP66 protection rating, natural cooling, low noise level of less than 25dB(A), and operating temperature range of -25°C to +60°C make it suitable for demanding indoor and outdoor installations.
The compact design, lightweight construction, RS485 and WLAN connectivity, and 5-year warranty make the EAHI-SL series a reliable solution for modern solar energy systems.
Key Features
- Models: EAHI-3000-SL / EAHI-3600-SL / EAHI-5000-SL / EAHI-6000-SL
- Nominal AC Power: 3kW / 3.6kW / 5kW / 6kW
- Maximum DC Power: 4.68kW / 4.68kW / 6.5kW / 7.8kW
- Maximum DC Voltage: 550V
- Rated DC Voltage: 360V
- Minimum DC Voltage to Start Feed-In: 150V
- Maximum DC Current: 16A / 16A / 32A / 32A
- MPP Voltage Range: 100–540V
- MPPT Trackers: 1 / 1 / 2 / 2
- DC Inputs: 1 / 1 / 2 / 2
- Nominal AC Voltage: 220/230V
- Rated AC Voltage: 220V
- Maximum AC Current: 13.6A / 16.4A / 22.7A / 27.3A
- Rated AC Current: 13A / 15.7A / 21.8A / 26.1A
- Frequency: 50/60Hz
- Power Factor: 0.99
- THD: <3%
- Feed-In Phases: Single phase
- Maximum Efficiency: 97.8%
- Dimensions: 440 × 548 × 197mm
- Weight: 21.4kg / 21.4kg / 24.8kg / 24.8kg
- Noise Level: <25dB(A)
- Operating Temperature: -25°C to +60°C
- Transformer: High-Frequency Transformer
- Protection Class: IP66
- Cooling: Natural cooling
- Maximum Altitude: 4,000m
- Interface: RS485, WLAN
- Warranty: 5 years
- High-efficiency solar power conversion
- Wide 100–540V MPPT voltage range
- Dual MPPT on 5kW and 6kW models
- Excellent 0.99 power factor
- Low harmonic distortion
- IP66 protection for demanding environments
- Silent natural cooling
- WLAN connectivity for monitoring
- Compact and lightweight design
Model Comparison
| Specification | EAHI-3000-SL | EAHI-3600-SL | EAHI-5000-SL | EAHI-6000-SL |
|---|---|---|---|---|
| Nominal AC Power | 3kW | 3.6kW | 5kW | 6kW |
| Max. DC Power | 4.68kW | 4.68kW | 6.5kW | 7.8kW |
| Max. DC Voltage | 550V | 550V | 550V | 550V |
| Max. DC Current | 16A | 16A | 32A | 32A |
| MPPT Range | 100–540V | 100–540V | 100–540V | 100–540V |
| MPPT Trackers | 1 | 1 | 2 | 2 |
| DC Inputs | 1 | 1 | 2 | 2 |
| Max. AC Current | 13.6A | 16.4A | 22.7A | 27.3A |
| Max. Efficiency | 97.8% | 97.8% | 97.8% | 97.8% |
| Weight | 21.4kg | 21.4kg | 24.8kg | 24.8kg |
